5000-XR-WD

RF Power Meter Display for Secure-Site Applications

Portable RF power measurement with automatic sensor detection

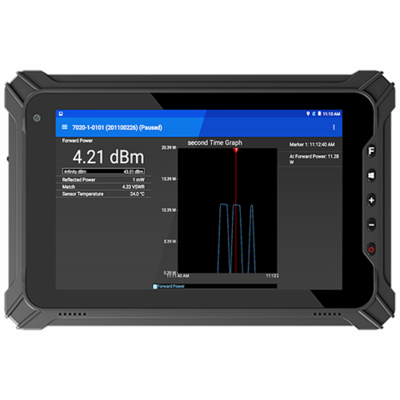

The Bird 5000-XR-WD, RF Power Meter Display provides a portable, intuitive interface for viewing and managing measurements from compatible Bird USB RF power sensors. Its high-resolution color touchscreen provides clear measurement visibility in the field, on the bench, or in an R&D lab environment.

When connected to a compatible Bird RF power sensor, the 5000-XR automatically detects the sensor and displays the measurements supported by that sensor, including True Average Power, VSWR, Return Loss, and more. Measurement capability and frequency range are determined by the connected Bird sensor.

The 5000-XR-WD saves session information for reviewing measurement results. Its Android-based platform provides options for sharing and transferring data through Bluetooth or USB

Product Features

• Wireless and camera capabilities disabled for applications requiring additional security
• Rugged, 8-inch color touch screen display for field and lab use
• Automatic detection of compatible Bird USB field sensors
• Field-swappable battery for extended use
• Built-in camera for documenting equipment serial and model numbers for warranty and installation validation
• Data logging with numerical & graphical display
• Data transfer via USB or Bluetooth

Key Measurements

• True Average Power (Forward and Reflected)
• VSWR, Return Loss, rho, Match Efficiency
• Peak Power, Peak to Average Ratio, Crest Factor, PEP
• Burst and Burst Average Power
• CDF, CCDF, Confidence %
• Pulse Parameters
• Sensor Temperature

Specifications

• External I/O Ports:
  • USB Type-C: Charging, Commucation with sensors
  • USB 2.0: Commucation with sensors
  • Power Import Port: USB Type-C (Supports PE + 2.0 Fast Charging)
• Display: Full-Color 8 in 1920 x 1200-pixel display w/backlight
• Operating System: Android 14
• Languages: Engilsh
• Storage: 128 GB
• Data Transfer: USB drive, PC, or Bluetooth
• Battery: Removable, Rechargeable, Internal 3.7V/8500mAh Battery
• Battery Life: 8 hours typical
• Recommended Calibration Interval: No calibration required (sensor calibration recommended)
• Standard Power Adapter: US AC/DC USB-C Power Supply (18W max.)
• Upgradeability: Firmware field-upgradable via USB port
• Additional Functions: Data logging, numerical & graphing display
• Sensor Detection: Automatic USB Sensors
• Standard Accessories: 5V Charger, 6' SeaLatch USB Cable, 6' USB Cable, Soft Carry Case, Stylus and Instruction Manual
