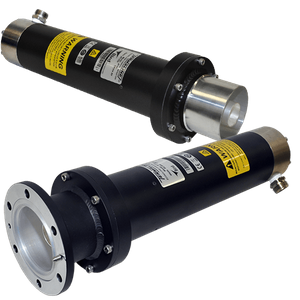

8770 Series, 50kW RF Terminations

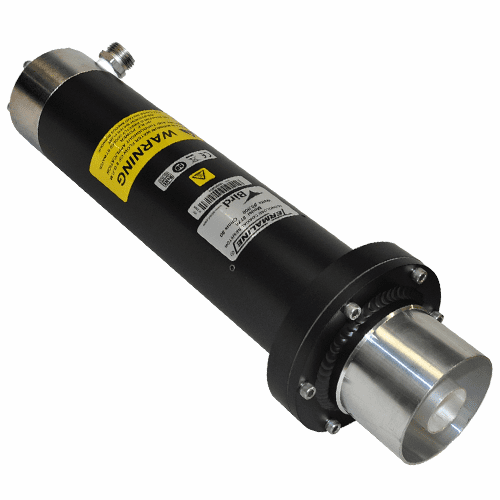

8770 Series, 50kW Water-Cooled RF Loads
High-Power RF Loading with Water-Cooled Performance
The 8770 Series provides reliable, high-power RF termination in a compact, water-cooled design. Built for continuous 50 kW operation, these loads are ideal for transmitter and transmission line systems where space is limited and thermal efficiency is critical. Using a hollow resistive film element, the 8770 Series converts RF energy directly into heat, which is absorbed by internal water flow—virtually eliminating ambient heat and allowing for flexible, position independent installation. With low VSWR and non-radiating performance, it’s a dependable solution for long-duration use in high-power RF environments.
Efficient High-Power Dissipation
Handles up to 50 kW with direct water cooling, keeping temperatures low and performance stable.
Flexible Installation
Compact design installs easily in tight spaces and operates in any orientation with standard potable water.
Reliable Performance
Low VSWR and non-radiating construction ensure consistent termination from DC to 900 MHz.
