8072A-1 Termination

Item# 8072A-1
$290.00

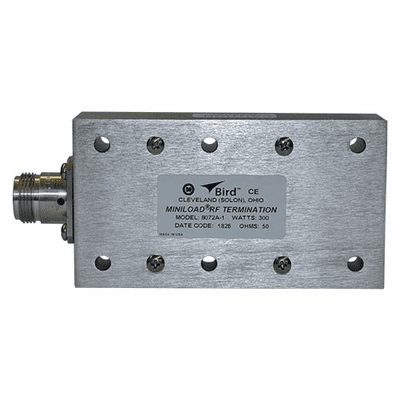

8072A-1, 300 Watt RF Coaxial Termination

8072A-1, RF Terminations are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.


Specifications

  • Power Rating: 300W CW or 3.6 kW peak power pulse with 100 uSEC max. @ 1 kHz PRR, when mounted to a heat sink capable of maintaining a case temperature of 100C (max)
  • Frequency Range & VSWR:
    • DC to 1 GHz @ 1.10:1 (max)
    • 1 to 2.5 GHz @ 1.20:1 (max)
  • Connector: N-Type Female Connector
  • Cooling: Conduction-Cooled
