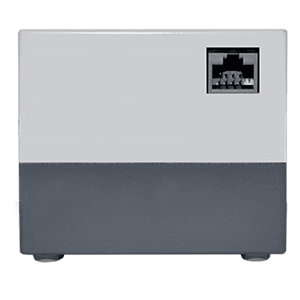

4027F60M, 57-63 MHz, 100W to 6kW

Filtered RF Power Sensor

Call (866) 695-4569 for Quote or Email us for more information

4027F60M, RF Power Sensor is designed for use in semiconductor processing and other precision process applications. At the calibrated frequency and power level, these sensors are capable of 1% accuracy. Intended for use with Bird 4421A Series Precision Multifunction Power Meters, these sensors provide a threefold improvement in long term unit to unit accuracy.

Connectors are required to be equipped on BOTH the INPUT and OUTPUT side of the sensor.
Bird guarantees the 4027 Series Sensors at +-1% Accuracy only with connectors the sensor is calibrated and sold with.
If you do not select connectors when placing this item in the shopping cart someone from sales will contact you to assist with connector selection and final pricing.


  • Frequency Range: 57-63 MHz
  • Power Range: 100W to 6kW
  • Accuracy: ±1% at calibration frequencies and power levels
    ±2 % at other frequency and power levels
    Add 2% to uncertainty outside 25 ± 10 C
  • Calibration Power Level: 1700W
  • Uniformity: 2 % maximum unit to unit, at calibration frequency and power levels
  • Speed: 2 readings per second
  • Maximum Power: 10 kW units - 12 kW (max)
    6 kW units - 7.2 kW (max)
  • VSWR Range: 1.0-2.0
  • Directivity: 28 dB
  • Insertion Loss: <0.05 dB
  • External DC: 12 VDC, supplied from 4421A Multifunction Power Meter
  • Connectors: Input and Output Connectors MUST be ordered separately at additional cost
  • Calibration Cycle: 6 month. Performance before and performance after data to be supplied for units
