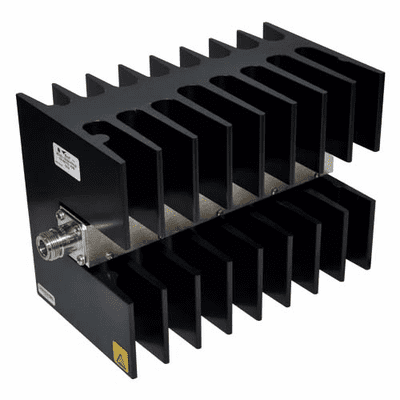

150-SA-FFN Series AttenuatorsZoom

150-SA-FFN Series Attenuators

Item# 150-SA-FFN

150-SA-FFN Series, 150 Watt RF Attenuators

150-SA-FFN Series, Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.

  • Power Rating:
    • 150W (max) @ 40C (Bi-Directional)
    • 180W (max) @ 25C
  • Frequency Range DC to 2.4 GHz
  • VSWR:
    • DC to 1 GHz @ 1.10:1 (max)
    • 1 to 2.4 GHz @ 1.25:1 (max)
  • Impedance: 50 Ohms, nominal
  • Connector: N-Type Female Connectors
  • Cooling: Convection-Cooled
  • RoHS Compliant

Select the accessory below to add CALDATA to you order

Detailed Specifications and Product Information on BirdRF.com
