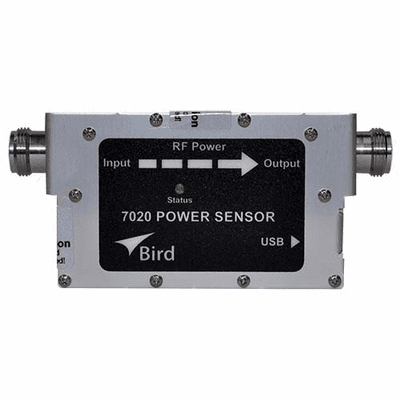

7020-1-010101, 350 MHz - 4.0 GHz Wideband Power SensorZoom

7020-1-010101, 350 MHz - 4.0 GHz Wideband Power Sensor

Item# 7020-1-010101
$1,321.00

7020-1-010101

350 MHz - 4.0 GHz, 0.15 to 150W
Wideband RF Power Monitor


7020-1-010101, Wideband RF Power Sensor is and economical, plug and play solution to your power measurement needs. The sensor determines and reports Forward and Reflected True Average Power and VSWR over a wide frequency range of 350 MHz - 4.0 GHz. It also never requires field calibration, only requires factory calibration once per year and is traceable to National Institute of Standards and Technology (NIST).

Supported Modulations

Wide coverage of applications: Analog Cellular, Digital Cellular, 3G, 4G, Tetra, APCO/P25, Trunking, CDMA, TDMA, WCDMA, GSM, Transportation, Tactical Military, Radar, Avionics, Marine, LMR, Analog Broadcast, Digital Broadcast, GSM, GPRS, EDGE, UMTS, HSDPA, Bluetooth, Fire, GPS, NPSPAC, Paging, Project 25, Public Safety, Telematics, Utilities, WIMAX and WLAN.


Specifications

  • Frequency Range: 350 MHz - 4.0 GHz
  • Power Measurement Range: 0.15 W to 150 W
  • Measurement Accuracy: +/- (4% of reading + 0.05 W)
    (above 35 °C or below 15 °C add 3%)
  • Insertion Loss: 0.1 dB (max)
  • Insertion VSWR:
  • Impedance:
  • PIM Rating: -130 dBc @ 460 MHz
  • Connectors: N-Type Female
  • Power Supply: 5Vdc from USB host
  • Interface: USB 2.0
  • Upgradability: Field upgradable firmware via the USB port
  • Data Logging wih Bird VPM3, Virtual Power Meter Software
  • Compliance: CE, RoHS

Standard Accessories include: Sealatch USB Cable, VPM3 Virtual Power Meter Software, 7020 Instruction Manual, VPM3 Instruction Manual
