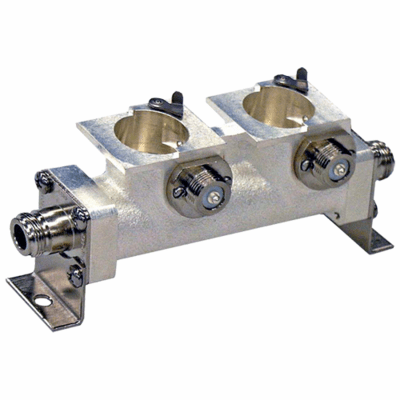

4522A002-5, RF Line Section

Dual Element Panel Mount

4522A002-5, Line Sction is designed for insertion between a transmitter and antenna or load. The line section is equipped with two sockets where Plug-In Element(s), in the desired power and frequency range, are inserted. These dual-socket line sections are for simultaneous measurement of forward and reflected power. RF connectors are sold separately.

Specifications

• Line Size: 7/8"
• Number of Element Sockets: 2
• Length: 6.22" (15.8 cm)
• Weight: 1.25 lb.
• Connector Type: N-Type (Female) w/ Brackets
