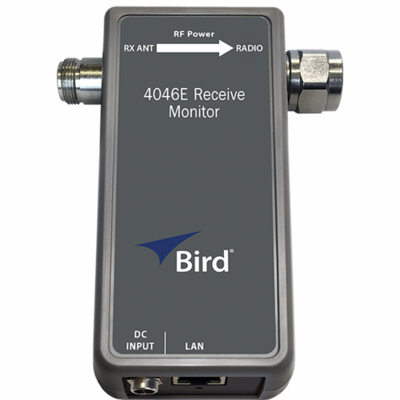

4046E-1-430003-0102, Receive Antenna Monitor, Ethernet, N (F) to N (M)

4046E-1-430003-0102

Receive Antenna Monitor, 101 MHz to 1000 MHz, Ethernet N(F) - N(M)

Choose an accessory below to include Software Options, Extended Warranty and/or CALDATA with your order. These options must be added at the time of purchase.

RX Monitoring Isn’t Optional | Visibility Without Complexity

The Bird 4046E-1-430003-0102 Antenna Monitor provides real-time visibility into receive antenna performance enabling early detection of degradation without disrupting communications. Installed between the receive antenna and base station, it monitors return loss and alerts users when conditions deviate from defined baselines.

In addition to antenna health monitoring, the 4046E can scan for strong in-band interfering signals (RSSI), helping identify unexpected carriers that may degrade receive performance. The compact, Ethernet-enabled sensor integrates with SNMP-based systems and can be configured remotely via a built-in web interface. User-defined thresholds, frequency scheduling, and remote firmware updates provide reliable, customizable monitoring in a rugged, fieldready design. When paireds with Bird’s transmit-side monitoring solutions, the 4046E delivers complete RF system visibility.

Key Features and Benefits

Return Loss Monitoring: Scheduled, in-line return loss measurements detect antenna/feedline degradation over time
Interference Detection (RSSI): Standby-mode RSSI scans identify strong in-band interferers; user-set thresholds trigger WebUI/SNMP alarms
Clear, Actionable Data: Reports real-time results and alarms for quick detection of receive-path issues before performance is affected
Remote Access and Alarm Management: Integrates with SNMP v2c/ v3 and a built-in web interface for remote setup and centralized alarm handling no site visit required
Flexible Deployment: User-defined frequency lists, schedules, and thresholds adapt to site needs, with remote updates for easy adjustments

Applications

Public Safety: Police, fire, EMS, and emergency response
Transportation: Rail, transit, and aviation systems
Utilities & Energy: Substations, smart grid, and SCADA
Industrial: Factory automation and RF-linked operations
Telecom & Broadcast: Base stations and RF infrastructure
Military & Government: Secure, mission-critical RF networks

Specifications

Measurement Type: In-Line, switched reflectometer, single or swept frequency
Frequency Range: 101 to 1000 MHz
Return Loss, Measurement Range: -26 dB to 0 dB
Test Signal Output (to antenna): -10 dBm, nominal
Test Signal Leakage (to radio) -30 dBm, max.
Measurement Duration: 250ms per measurement frequency, max.
Test Signal Application Interval: User selectable, time window
Impedance, Nominal: 50 Ohms
Insertion Loss: 0.7 dB, max
Insertion VSWR: 1.3:1, typical
RSSI, max Signal Level: -10 dBm
Interfering Signal Detector

Max. Signal Level: -10 dBm
Frequency Range: 101 MHz to 1000 MHz
RSSI, Measurement Bandwidth: 25 kHz
RSSI Interference Detection Threshold Level: User selectable from -55 dBm to -35 dBm
