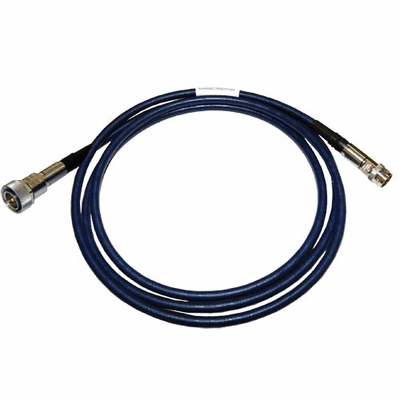

TC-MNME-3.0, RF Test Cable, 3.0m, N (M) - 7/16 DIN (M)Zoom

TC-MNME-3.0, RF Test Cable, 3.0m, N (M) - 7/16 DIN (M)

Item# TC-MNME-3-0
$640.00

TC-MNME-3.0, Phase Stable Cable

N (M) to 7/16 DIN (M), 3.0m, DC to 6 GHz


TC-MNME-3.0, Test Cable is an armored assembly offering excellent electrical performance and low attenuation. These high precision components also offer a long life providing they are treated with the proper care and attention.


Specifications

  • Frequency Range: DC to 6.0 GHz
  • Power Ratings: 100 W
  • Connectors: N-Type (Male), 7/16 DIN (Male)
  • Impedance: 50 Ohms
  • VSWR: 1.25:1 (max)
  • Insertion Loss: 3.89 dB (max)
  • Operating Temperature: -10 to +50°C
  • Length:: 9.8' (3.0m)
